新品发布丨CT75A系列信号连接器助力光伏电站智能监控

2020-09-25

新品发布 New releases

伴随全球光伏产业新一轮的快速增长,光伏电站正在向自动化、智能化的方向发展。为解决光伏电站系统中的逆变器等设备在严酷户外环境下稳定传输监控信号的难题,经过小航的不懈努力,推出了CT75A系列信号传输连接器!

JONHON has launched CT75A series signal transmission connectors to meet the needs of stable monitoring signals transmission via inverters in photovoltaic power station systems in harsh outdoor environments.

产品简介Introduction

CT75A系列信号传输连接器采用人体工学设计,具有卡扣锁紧连接及防误插结构,可实现狭小空间内的快速连接和盲插功能。产品选用高耐候材料及成熟加工装配工艺,在满足严酷户外环境同时更具性价比。

  • Ergonomic design
  • Bayonet structure, fast and reliable connection
  • Error proof, blind-mating interconnection in a small space

Excellent weather-resistant materials and mature assembly processing techniques, cost-effective and suitable for harsh outdoor environment.

性能指标

额定电流:2A

额定电压:24V

工作温度:-40℃~105℃

振动:10Hz~55Hz,单振幅0.75mm,一次扫描时间1min

冲击:加速度490m/s² ,持续时间11ms

机械寿命:100 次

防护性能:IP65

Performance

Rated current: 2A

Rated voltage: 24V

Working temp: -40℃~105℃

Vibration: 10Hz~55Hz, single amplitude 0.75mm, 1min for one scan

Shock: acceleration 490m/s², duration 11ms

Endurance: 100 cycles

IP degree: IP65

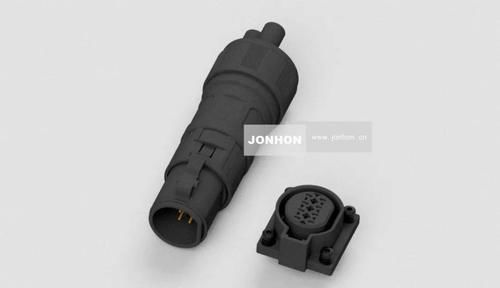

▼CT75A系列信号连接器

CT75A series signal transmission connectors
